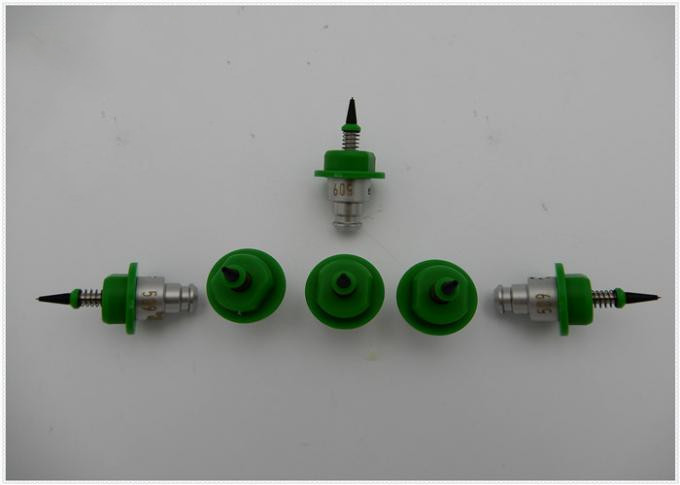

JUKI NOZZLE 509 40025165 For SMT Pick And Place Machine Ocean Transport, Air Transport, Air Express Services
Description:
Surface mounting was originally called "planar mounting".
Surface-mount technology was developed in the 1960s and became widely used in the mid 1980s. By the late 1990s, the great majority of high-tech electronic printed circuit assemblies were dominated by surface mount devices. Much of the pioneering work in this technology was done by IBM. The design approach first demonstrated by IBM in 1960 in a small-scale computer was later applied in the launch Vehicle Digital Computer used in the Instrument Unit that guided all Saturn IB and Saturn V vehicles. Components were mechanically redesigned to have small metal tabs or end caps that could be directly soldered to the surface of the PCB. Components became much smaller and component placement on both sides of a board became far more common with surface mounting than through-hole mounting, allowing much higher circuit densities and smaller circuit boards and, in turn, machines or subassemblies containing the boards.
JUKI Nozzle Specifications:
| Brand Name | JUKI 509 NOZZLE |
| Part Number | 40025165 |
| Model | JUKI NOZZLE 509 |
| Warranty | 1 month |
| Usage for Machine | JUKI KE2000 FX SERIES MACHINE |
| Delivery Terms | EXW |
Supply Ability:
Supply all original new and used JUKI Nozzle at good price:
- E35017210A0 NOZZLE ASSEMBLY 101
- E35087210A0 NOZZLE ASSEMBLY 101 CVS
- E35027210A0 NOZZLE ASSEMBLY 102
- E35097210A0 NOZZLE ASSEMBLY 102 CVS
- E35047210A0 NOZZLE ASSEMBLY 104
- E35057210A0 NOZZLE ASSEMBLY 105
- E35067210A0 NOZZLE ASSEMBLY 106
- 40010995 NOZZLE ASSEMBLY 502 CVS
- 40001341 NOZZLE ASSEMBLY 503
- 40010996 NOZZLE ASSEMBLY 503 CVS
- 40001342 NOZZLE ASSEMBLY 504
- 40010997 NOZZLE ASSEMBLY 504 CVS
- 40001343 NOZZLE ASSEMBLY 505
- 40010998 NOZZLE ASSEMBLY 505 CVS
- 40001344 NOZZLE ASSEMBLY 506
- 40001345 NOZZLE ASSEMBLY 507
- E36157290A0 NOZZLE ASSEMBLY 510
- E36167290A0 NOZZLE ASSEMBLY 511
- E36187290A0 NOZZLE ASSEMBLY 513
- E36207290A0 NOZZLE ASSEMBLY 515
- E36327290B0 NOZZLE ASSEMBLY 523
- E36337290B0 NOZZLE ASSEMBLY 524
- E36347290B0 NOZZLE ASSEMBLY 525
- E36377290B0 NOZZLE ASSEMBLY 528
- E36387290B0 NOZZLE ASSEMBLY 529
- E36407290B0 NOZZLE ASSEMBLY 537
- 40026602 NOZZLE ASSEMBLY 579
- 40027032 NOZZLE ASSEMBLY 580
- 40027874 NOZZLE ASSEMBLY 591
- 40028020 NOZZLE ASSEMBLY 592
- E36417290B0 NOZZLE ASSEMBLY 700
Related Advantages:
| Part Number | Description |
| 40001339 | 501 0.7×0.4Φ0.25 Hole |
| 40001340 | 502 Φ0.7/Φ0.35 |
| 40001342 | 504 Φ1.5/Φ1.0 |
| 40001343 | 505 Φ3.5/Φ1.7 |
| E3608-729-0A0 | 500 1.0×0.5Φ0.3×2 Hole |
| E3600-729-0A0 | 501 0.7×0.4Φ0.2×2 Hole |
| E3601-729-0A0 | 502 Φ0.7/Φ0.4 |
| E3606-729-0A0 | 507 Φ8.5/Φ5.0 |
| E3607-729-0A0 | 508 Φ9.5/Φ8.0 |
| E3616-729-0A0 | 511 MELF Φ2.0/Φ1.2 |
| E3622-729-0A0 | 517 9.0×3.4 for Connectors |
| E3504-721-0A0 | 104 Φ4.0/Φ3.2 |
Business Scope:
This website has been created primarily to be a technical resource for surface mount process engineers and also for anyone with an interest in surface mount technology. The scope of the website will be all aspects of the manufacturing process from solder paste printing, solder paste inspection, component placement, and will include answers to the many frequently asked question.
- Nozzles, Feeders, Feeder Parts, cutters, filters, belts, motors, valves, sensors, camera, board cards and other machine parts...
- Printer squeegee holder/blade, Clamp foil and other Printer Parts.
- ESD splice tape, tool, stencil clean wiper/paper, PCB Magazine...
- SMT Peripheral equipment (PCB Separator, Solder paste mixer, Automatic SMD Chip Counter, etc... )
- SMT product recycling (feeder nozzle used machine...)
